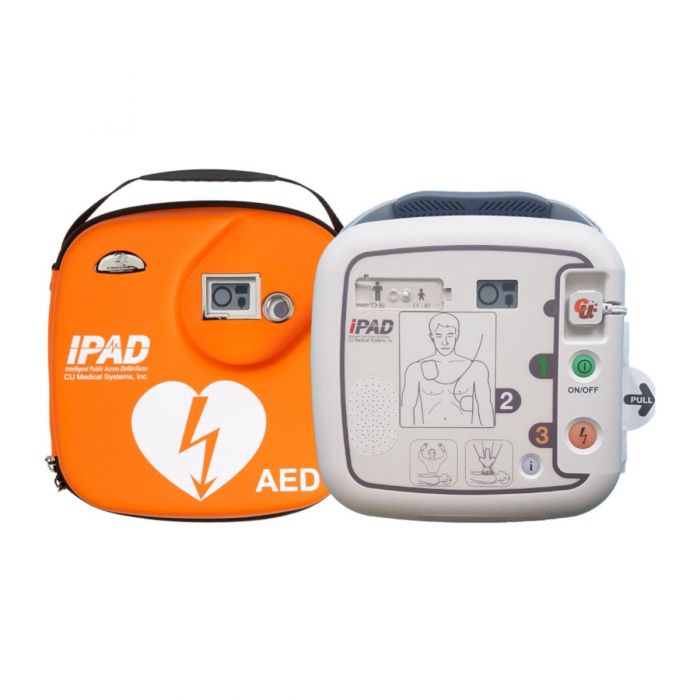

CU Medical iPAD SP1 AED Semi-Automatic

Product Exterior
Dimension: 260 x 256 x 70 mm (Width x Length x Height)
Weight: Appr. 2.4kg (Including battery pack and pads) .

Defibrillator
Operating Mode: Semi-automated, Full-automated
Waveform: e-cube biphasic (Truncated exponential type)
Output Energy: 150 J at 50 A load for Adults, 50 J at 50 A load for Children .

Self-Diagnostic Test
Auto
Power On Self-Test, Run-time Self-Test
Daily, Weekly, and Monthly Self-Test
Manual
Battery Pack Insertion Test (done when the user inserts the battery pack into the battery pack compartment of the device).

ECG Analysis System
Fucntion: Determines the impedance of the patient and evaluates the ECG of the patient to determine whether it is shockable or non-shockable
Impedance Range: 25? ~ 175? .

Control Devices, Indicators, Voice Instructions
Control Devices Power Button, i-Button, Shock Button, Adult/Pediatric Selection Switch
Status LCD Displays device status, battery level and pads status
CPR Detection Indicator: Lights if CPR is detected; flashes if CPR is not detected..

Disposable Battery Pack
Battery Type: 12V DC, 4.2Ah LiMnO2, Disposable
Capacity: At least 200 shocks for a new battery or 8 hours of operating time at room temperature

Temperature
Operating: Temperature: 0? ~ 43? (32? ~ 109?)
Storage: Temperature: -20? ~ 60? (-4? ~ 140?).

Electrode
Adult
Electrode Area : 110cm2
Cable Length: Total 120cm
Paediatric
Electrode Area: 50cm2
Cable Length: Total 120cm.

Data Storage and Transfer
Internal Memory Data Capacity: 5 individual treatments, up to 3 hours per treatment
IrDA: For PC communications
SD Card External memory: Data may be copied from the internal memory to the SD Card

Standard Package
Device(1), Adult Pads(1), Disposable Battery(1), Carrying Case(1), User’s Manual(1).

Optional Accessories
Paediactric Pads(1), SD Card(1), CU-Expert software(1)

The iPAD SP1 range of defibrillators has been developed with the end user in mind, providing robust, easy to use devices with clear instructions. The award-winning design and high-quality manufacture incorporates the latest in defibrillation technology to assist the user in saving precious time when every second counts.

The iPAD SP1 is a nominated device of the British Heart Foundation and widely used by the NHS Ambulance, Police and Fire Services.

• Operations status indicator for battery and pad life
• Free, robust carry case
• Daily self-checks
• Simple switch from adult to child mode
• Two sets of electrode pads, one set pre-connected, one spare set. For use on adults and children (age1+)
• Clear visual and verbal guidance
• Ambient noise adjustment
• CPR detection and metronome
• Large internal memory with simple data access
• Less than 6 seconds from completion of CPR to shock delivery
• Disposable battery pack
